Semiconductor defect detection involves identifying flaws on a wafer, die, or finished chip prior to advancement to subsequent fabrication or assembly stages. Defects at this scale may include particle contamination on the wafer surface, misaligned photolithography patterns, cracks propagating through a die, or bonding faults at the package level. Since semiconductor devices are constructed in layers, defects introduced early in the process are compounded by each subsequent step. Therefore, detection speed and coverage are as critical as detection accuracy.

Semiconductor manufacturing occurs at a scale where conventional visual inspection rapidly reaches its physical limitations. Circuit features on modern wafers are measured in nanometers, a resolution beyond standard camera and lens systems without specialized optics. Defect rates that are negligible in other manufacturing sectors can result in substantial yield loss when multiplied across wafers containing thousands of individual die. Consequently, semiconductor quality control has long relied on specialized inspection equipment. The current shift is from fixed-rule image comparison to trained AI models that learn to identify defects, rather than relying solely on predefined checklists.

How Semiconductor Wafer Inspection Works

Semiconductor wafer inspection typically happens at several checkpoints across the fabrication sequence, not as a single final check. Bare wafer inspection screens incoming material for surface contamination or crystal defects before any patterning begins. In-line inspection occurs between individual process steps, such as after etching or deposition, to catch pattern deviations while they can still be corrected or the affected wafer scrapped early rather than late. Final inspection, often paired with electrical test, evaluates completed die before packaging.

At each of these checkpoints, high-resolution imaging, whether from optical microscopy, scanning electron microscopy, or specialized dark-field and bright-field systems, captures the wafer surface or pattern layer. An AI-based inspection model compares this image data against a learned reference of what a defect-free pattern looks like, flagging deviations for review. This is the same anomaly-based logic xis.ai applies in

, where a model trained on normal appearance flags departures from it rather than checking against a fixed list of known defect types.

Wafer surface defects fall into a few recurring categories that inspection systems are trained to recognize:

Why Micro Defect Detection Matters at This Scale

The economics of semiconductor manufacturing are fundamentally driven by yield, defined as the proportion of die on a wafer that pass final testing and are suitable for sale. Since a single wafer represents significant production value, even minor improvements in defect capture rates can substantially reduce the cost per functional die. Consequently, micro defect detection—identifying flaws at the sub-micron scale—is regarded as a core yield-management function rather than merely a downstream quality checkpoint.

Manual and rule-based inspection methods are limited because the most critical defects are often novel and previously unobserved. Advancements such as new process nodes, materials, and packaging formats introduce defect types absent in earlier generations. Systems trained solely on a fixed catalog of known flaws will consistently overlook these emerging and frequently costly failure modes. AI-based semiconductor defect detection overcomes this limitation by learning the normal appearance of wafers or pattern layers directly from production data, enabling the identification of previously unseen anomalies without the need for pre-labeling every defect type.

Automated Semiconductor Quality Control in Production

Implementing automated semiconductor quality control in an operational fabrication facility requires integration of inspection decisions with the production line's control systems, rather than merely generating pass or fail image classifications. When an AI-based inspection model flags a wafer or die, the result must initiate a downstream action, such as rerouting the unit for engineering review, halting a process tool experiencing a defect spike, or logging the outcome for broader yield analysis.

This connects semiconductor inspection to a wider capability that xis.ai builds across its platform: centralized visibility across facilities. As covered in

, semiconductor manufacturing is one of the production environments where distributed facilities benefit from aggregated inspection data, since a defect pattern emerging at one fab can be identified and addressed at others before it repeats. The same underlying data acquisition principles that govern high-resolution defect imaging in other precision manufacturing contexts, discussed in

, apply directly to wafer-level imaging, where resolution, lighting, and capture consistency determine whether a model can reliably separate genuine defects from process noise.






Where AI-Based Inspection Fits Alongside Existing Systems

Semiconductor fabs rarely replace existing inspection infrastructure wholesale. AI-based defect detection is more commonly layered onto existing optical and SEM inspection tools, adding a trained classification and anomaly-detection step on top of image capture hardware that is already in place. This mirrors the broader distinction between machine vision and computer vision that shapes industrial inspection generally, explored in

? , the imaging hardware defines what can be seen, while the AI model defines what can be understood from it.

As semiconductor manufacturing advances toward smaller process nodes, increased die density, and more complex packaging, critical defects increasingly fall outside the scope of fixed rule sets. Automated quality control systems based on AI models enable fabrication facilities to adapt to these changes without the need to re-engineer inspection lines for each new generation of defects.

Semiconductor defect detection is the process of identifying flaws on a wafer, die, or finished chip, such as particle contamination, pattern misalignment, or crystal-originated defects, at inspection checkpoints throughout fabrication and assembly.

How does AI improve semiconductor wafer inspection?

AI-based inspection learns the normal appearance of a wafer or pattern layer from production data, allowing it to flag previously unseen anomalies rather than relying only on a predefined list of known defect types.

Common causes include particle contamination during handling, photolithography pattern errors, crystal defects present in the substrate, mechanical damage from wafer handling, and non-uniform film deposition.

Can AI-based inspection replace existing fab inspection equipment?

Not typically. AI-based defect detection is usually layered onto existing optical and SEM inspection hardware, adding a trained classification step rather than replacing the imaging systems already in place.

Why does micro defect detection matter for yield?

Because a wafer carries a large volume of production value across many die, even small improvements in defect capture rate at the micron and sub-micron scale have an outsized effect on the proportion of die that pass final test.






AI Semiconductor Defect Detection

Connectors serve as the physical link between electronic subsystems, and a single misaligned pin or improperly seated connector can cause intermittent failures that are difficult to trace once a product reaches a customer. Connector defect detection built on artificial intelligence addresses this by verifying pin alignment, contact condition, and proper seating on every unit that passes through assembly, rather than relying on manual spot checks that cover only a fraction of production volume.

This guide covers how AI connector inspection works, the defect types it targets, and where it fits into broader electronics assembly quality control.

Why Connector Defects Are Difficult to Catch Manually

Connectors often contain dozens of small pins packed closely together, making visual inspection under normal lighting difficult even for an experienced operator. A bent pin, a contact seated slightly out of position, or a housing that has not fully latched can all appear acceptable at a casual glance while still causing connection failures once the assembly is in use.

Manual connector inspection at the pin level requires magnification and sustained attention, both of which become harder to maintain consistently as production volume increases. This creates a recurring gap in coverage where subtle connector defects pass undetected into finished assemblies.

How AI Connector Inspection Identifies Defects

AI connector inspection applies computer vision models trained on high resolution connector imagery to identify pin misalignment, bent or missing contacts, incomplete seating, and housing damage. Because connector designs vary significantly across product lines, models are typically trained on the specific pin layout and housing geometry of each connector type used in a given assembly, allowing detection accuracy to remain high even for connectors with tightly spaced or unusual pin configurations.

This detection approach follows the same anomaly based principle used across other high precision electronics inspection categories, where a system learns the expected appearance of a component and flags deviations automatically rather than checking against a narrow predefined list, a method also applied to solder joint quality on assembled boards, covered in

Integration Into Electronics Assembly Inspection

Automated connector inspection is typically deployed at the point where connectors are seated during assembly, capturing images immediately after installation to confirm correct pin alignment and full seating before the unit advances to the next station. This inline placement allows connector defects to be identified and corrected early, before additional components are added around the connector that would make later correction more difficult.

Electronics assembly inspection benefits from this early detection approach across multiple checkpoints, similar to how printed circuit board defects are best caught before components are placed on the bare board, as covered in

Connector defects often remain hidden until a finished electronic assembly experiences an intermittent or complete failure in the field, which makes consistent, full coverage inspection during assembly far more valuable than periodic manual spot checks. AI connector inspection verifies pin alignment, contact condition, and seating on every unit, catching defects that are difficult to notice under normal lighting even with careful manual review. xis.ai trains its connector inspection models on the specific pin layout and housing geometry of each connector type, so accuracy holds across the varied connector designs used in modern electronics assembly.

What connector defects can AI inspection detect?

It identifies pin misalignment, bent or missing contacts, incomplete seating, and housing damage that can cause intermittent or complete connection failures.

Why is manual connector inspection unreliable at the pin level?

Connectors often contain closely packed pins that require magnification and sustained attention to inspect properly, which becomes harder to maintain consistently as production volume increases.

Where is AI connector inspection placed during assembly?

It is typically deployed at the point where connectors are seated, capturing images immediately after installation to confirm alignment and seating before further assembly continues.

Can AI connector inspection handle different connector designs?

Yes. Models are trained on the specific pin layout and housing geometry of each connector type, allowing accuracy to hold across varied designs used within the same product line.

How does connector inspection fit with other electronics quality checks?

It follows the same early detection principle used across other electronics inspection categories, catching defects before additional components are added that would make later correction more difficult.






AI Connector Inspection for Electronics Assembly

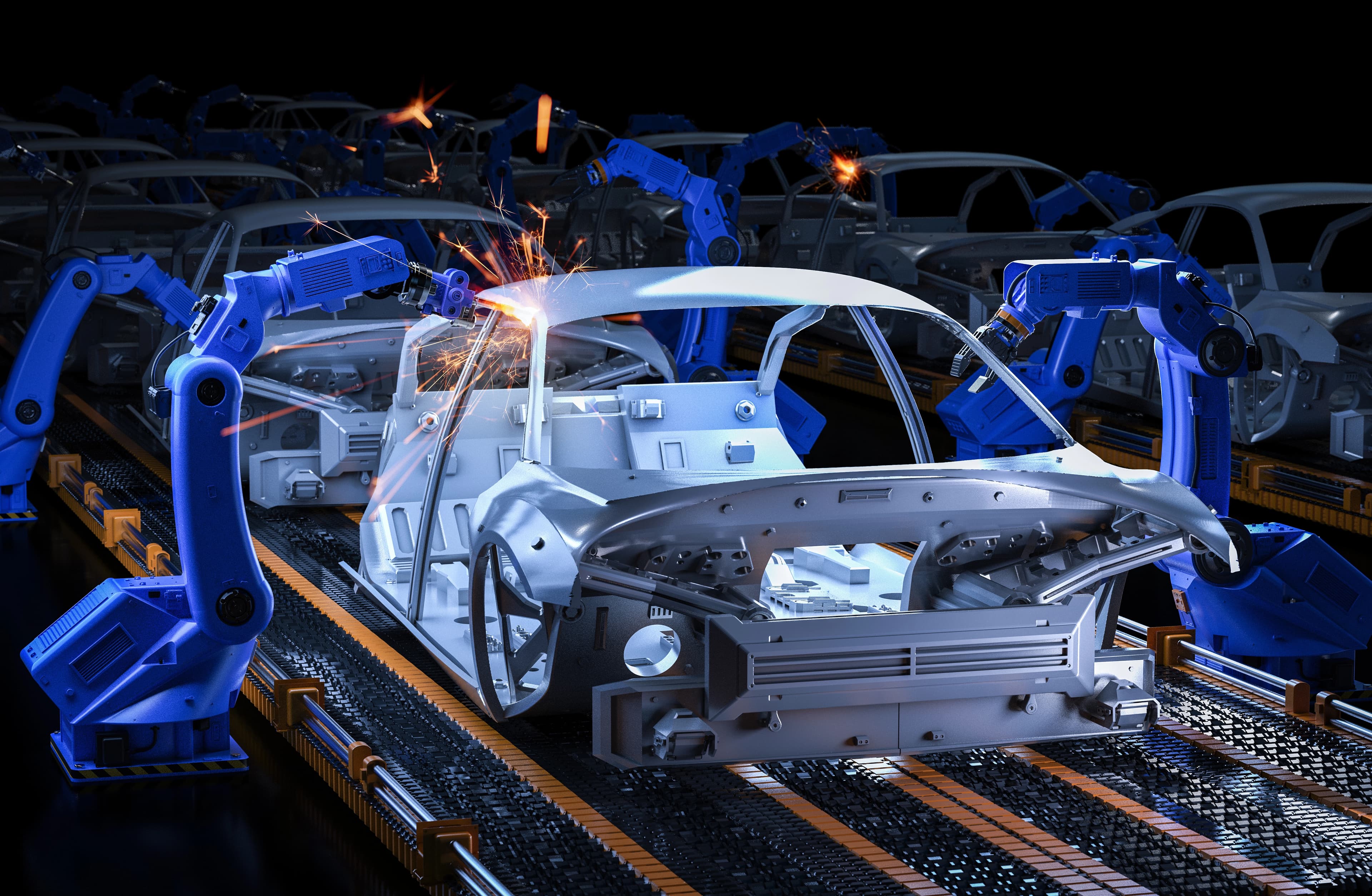

Automotive production combines high speed assembly with zero defect tolerance on safety critical components, which makes visual inspection one of the most demanding applications for artificial intelligence in manufacturing. A single vehicle passes through welding, painting, component assembly, and final surface checks before reaching a customer, and a defect introduced at any one of these stages can compound if it is not caught early.

This guide brings together how AI powered inspection applies across the automotive production line, with each section linking to a dedicated deep dive on that specific application.

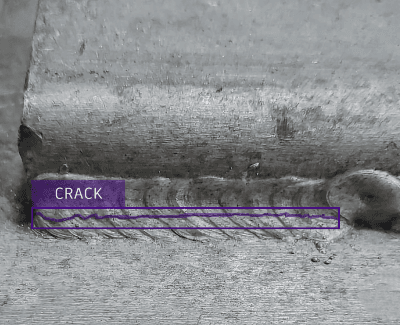

Structural welds on a vehicle body carry direct safety consequences if they fail, which makes consistent weld quality verification a priority rather than an optional check. AI models trained on weld imagery can identify porosity, undercut, and inconsistent bead geometry that rule based systems and manual inspection frequently miss, particularly across high volume production where every vehicle body needs the same level of scrutiny. The full methodology behind this approach, including how AI detects micro cracks in critical structural joints, is covered in

Paint quality is one of the most visible indicators of manufacturing quality to a customer, yet it remains difficult to inspect consistently through manual review since lighting angle and viewing distance both affect what a human inspector notices. AI paint inspection applies deep learning models trained on body panel imagery to detect orange peel, runs, dirt inclusion, and coverage inconsistencies, applying the same trained standard to every panel regardless of shift or inspector. This approach, including how multi angle image capture accounts for the reflective nature of painted surfaces, is detailed in

Tire manufacturing presents a distinct inspection challenge because tires are curved, textured, and structurally complex, which means the same defect can look different from one tire to the next. Sidewall cracks, surface cuts, air bubbles, and mold related imperfections often begin as subtle anomalies during rubber mixing, curing, or finishing, long before a tire reaches final inspection. AI powered tire inspection captures high resolution images of the sidewall and tread from multiple angles, using machine learning to recognize deviations from thousands of acceptable tires, as covered in

Surface defects on automotive parts can originate from nearly any stage of production, from stamping and casting through machining and finishing, and each part category tends to develop different defect characteristics. Stamped body panels can develop scratches and dents during handling, while cast components may carry porosity inherited from the casting process. AI surface defect detection addresses this variability by training separate models on the appearance characteristics of each part category, allowing anomaly detection to remain accurate across stamped, cast, and machined components alike, as explored in

Modern vehicle assembly involves thousands of individual components installed across dozens of stations, each with its own tolerance for correct placement, orientation, and fastening. Manual verification at this scale depends on operator attention remaining consistent across an entire shift, a standard that becomes harder to sustain as line speed increases. AI assembly verification checks every vehicle against the expected configuration at each station in real time, catching missing components, incorrect orientation, and fastening errors before they progress further down the line, as detailed in

Automotive manufacturing carries little tolerance for inspection gaps, since a defect missed at one station can compound as a vehicle moves through weld, paint, assembly, and final surface checks. AI inspection addresses this by applying the same trained standard to every vehicle at every stage, whether the check involves a structural weld, a painted panel, a tire, a machined component, or an assembly station. xis.ai builds its computer vision models around the specific appearance characteristics of each automotive application, so inspection accuracy holds across the full range of checks a vehicle passes through before reaching a customer.

What areas of automotive production does AI inspection cover?

AI inspection applies across weld quality, paint defects, tire surface conditions, general part surface defects, and assembly verification, covering the major checkpoints a vehicle passes through during production.

Does AI inspection replace manual quality checks entirely?

It reduces dependence on manual review by applying the same trained criteria to every unit, though many manufacturers use it alongside existing quality processes rather than removing all manual oversight at once.

Why does automotive manufacturing require inspection at multiple stages rather than one final check?

Defects introduced early in production, such as a weld or paint issue, can compound as a vehicle moves through additional stations, making it more costly to correct the later they are caught.

Can the same AI inspection system handle different vehicle models on one line?

Yes. Models can be trained on the expected configuration and appearance characteristics for multiple vehicle models, allowing the system to adapt as production shifts between variants.

How does AI inspection handle defects that were never explicitly programmed in advance?

Anomaly detection models learn the normal appearance of a component or surface and automatically flag deviations, allowing the system to catch defect types that were not part of the original training data.






AI Inspection for Automotive Manufacturing: Full Guide

Solder joints determine whether an electronic assembly functions reliably over its full service life, yet they remain one of the most difficult defect categories to inspect consistently through manual review. A joint that appears acceptable under one lighting angle can hide insufficient solder or a hairline bridge that only becomes visible from a different viewing position. Solder defect detection built on artificial intelligence addresses this by applying trained, consistent criteria to every joint on every board, regardless of shift or inspector.

This guide covers how AI solder joint inspection works, the defect types it targets, and where it fits alongside broader electronics manufacturing quality checks.

Why Manual Solder Joint Review Falls Short

Manual solder joint inspection depends on an inspector viewing each joint under magnification and judging whether solder volume, shape, and placement meet acceptable standards. At production volumes common in modern electronics assembly, this approach cannot realistically cover every joint on every board, so manufacturers often rely on sampling based review that leaves gaps in coverage.

Fatigue and inconsistent lighting further reduce reliability, since a joint flagged by one inspector may be judged acceptable by another reviewing the same board type later in the same shift. These inconsistencies matter because a single failed solder joint can cause intermittent or complete circuit failure long after a board has left the factory.

How AI Solder Inspection Identifies Defects

AI solder inspection applies computer vision models trained on high resolution board imagery to identify defect categories including insufficient solder, excess solder, solder bridging between adjacent pads, misaligned components, and cold joints that appear visually dull rather than properly reflowed. Rather than checking each joint against a single fixed threshold, these models learn from a large set of acceptable and defective joint images, allowing them to account for natural variation in joint appearance across different board designs.

This anomaly based approach mirrors the inspection method used elsewhere in electronics manufacturing, where a model learns the normal appearance of a component and flags deviations automatically rather than relying on a narrow-predefined defect list, a concept explored further in

Automated Solder Inspection on the Production Line

Automated solder inspection systems are typically deployed inline immediately after the reflow process, capturing images of each board before it advances functional testing or final assembly. This placement allows defective joints to be identified and corrected while the board is still early in production, avoiding the higher cost of catching the same defect after additional components or enclosures have been added.

Because solder joint quality is closely tied to overall board reliability, this inspection stage often works in tandem with earlier checks such as PCB defect detection, which identifies issues in the bare board before components are even placed, as covered in

Solder joint defects carry consequences that often surface only after a product reaches a customer, which makes consistent, full coverage inspection more valuable than periodic manual sampling. AI solder joint inspection applies the same trained standard to every joint on every board, catching insufficient solder, bridging, and misalignment before a defective assembly advances further into production. xis.ai builds its solder inspection models around the specific joint characteristics of individual board designs, so accuracy holds across the range of assemblies an electronics manufacturer produces.

What solder joint defects can AI inspection detect?

 AI solder inspection identifies insufficient solder, excess solder, bridging between adjacent pads, misaligned components, and cold joints that were not properly reflowed.

Why is manual solder joint inspection unreliable at scale?

 Manual review depends on magnification, lighting, and individual inspector judgment, which vary across shifts and often result in sampling based coverage rather than full board inspection.

Where is automated solder inspection placed on the line?

 It is typically deployed inline immediately after the reflow process, allowing defects to be caught before a board advances to functional testing or further assembly.

Does solder joint inspection replace PCB defect detection?

 No. It works alongside earlier checks such as PCB defect detection, which identifies issues in the bare board before components are placed.

Can AI solder inspection adapt to different board designs?

 Yes. Models are trained on the specific joint characteristics of individual board designs, allowing accuracy to hold across a range of assemblies.

large_26160852 1.jpg

medium_26160852 1.jpg

small_26160852 1.jpg

thumbnail_26160852 1.jpg

26160852 1.jpg

AI Solder Joint Inspection for Electronics Manufacturing

Assembly errors on an automotive production line rarely stay contained to a single station. A missing fastener, an incorrectly oriented component, or a skipped step can compound as a vehicle body moves further down the line, becoming more expensive and more difficult to correct the later it is caught. Assembly inspection built on artificial intelligence addresses this by verifying component presence, orientation, and fastening at each station in real time, rather than relying on periodic manual checks that leave gaps between inspection points.

This guide covers how AI assembly verification applies specifically to automotive production lines and where it fits alongside other automotive quality checks.

Why Assembly Verification Matters on Automotive Lines

Modern vehicle assembly involves thousands of individual components being installed across dozens of stations, each with its own tolerance for correct placement, orientation, and fastening. Manual verification at this scale depends on operator attention remaining consistent across an entire shift, a standard that becomes harder to maintain as line speed increases and fatigue accumulates.

Automotive assembly inspection replaces this reliance on sustained manual attention with automated assembly inspection, applying the same verification criteria to every vehicle that passes through a station, regardless of shift, time of day, or operator experience level.

AI assembly verification uses computer vision to capture images of each assembly point as a vehicle body moves through a station, comparing what the system observes against the expected configuration for that stage of production. This includes confirming that components are present, correctly oriented, and properly seated before the vehicle advances to the next station.

Assembly error detection extends beyond simple presence checks. Deep learning models can recognize contextual patterns across multiple components at once, identifying inconsistencies that a simple checklist based system would miss, an approach detailed further in

. This capability allows automotive manufacturers to inspect components and full assemblies without slowing the line, since verification happens inline rather than at a separate downstream checkpoint.

Reducing Downstream Costs Through Early Detection

Catching an assembly error at the station where it occurs is significantly less costly than discovering the same issue during final vehicle inspection or, worse, after the vehicle reaches a customer. Assembly verification performed inline allows defective assemblies to be flagged and corrected immediately, preventing the error from compounding as additional components are added at later stations.

This same principle of catching defects as early as possible in the production sequence applies across other automotive inspection categories, including structural checks such as weld quality verification, covered in

Assembly errors on an automotive line carry compounding costs the longer they go undetected, which makes station level verification more valuable than downstream sampling. AI assembly verification checks every vehicle at every station against the same trained standard, catching missing components, incorrect orientation, and fastening errors before they progress further down the line. xis.ai applies inline assembly inspection across automotive production so quality checks keep pace with line speed rather than depending on manual attention alone.

What does AI assembly verification check on an automotive line?

It confirms that components are present, correctly oriented, and properly fastened at each assembly station before a vehicle advances to the next stage.

How is AI assembly verification different from a manual checklist?

Deep learning models can recognize contextual patterns across multiple components simultaneously, catching inconsistencies that a simple checklist based process would miss.

Does assembly verification slow down the production line?

No. Verification occurs inline as the vehicle body moves through each station, allowing checks to happen without stopping or slowing production.

Why is catching assembly errors early important?

An error caught at the station where it occurs is less costly to correct than one discovered during final inspection, since it prevents the issue from compounding at later stations.

Can AI assembly verification adapt to different vehicle models on the same line?

Yes. Automated assembly inspection systems can be trained on the expected configuration for multiple vehicle models, allowing them to adapt as production shifts between variants.
